The Context

JOOR Platform

JOOR is a wholesale fashion platform that connects Brands (who sell products) and Retailers (who purchase products in bulk). Retailers can place orders with Brands once they are “connected” on the platform.

Brands and Retailers

Brands can create orders for Retailers on JOOR, provided they are “connected.” Retailers can also create their own orders once they have a connection with a Brand.

Linesheets & Styles

A Linesheet is a collection of products (Styles) organized by themes such as season, garment type, or gender. Retailers browse and shop from Linesheets to create their orders, similar to a fashion catalog.

Linesheet Visibility

For a Connection to view and shop from a Linesheet, visibility must be configured. There are three visibility options available:

  • Public: Anyone with the link can access the Linesheet.
  • My Connections: All Connections of the Brand can view the Linesheet.
  • Select Connections: Only specific Connections selected by the Brand can view the Linesheet.

The Problem

When configuring visibility for a Linesheet to specific Connections (using the “Select Connections” option), two key problems arise:

  1. Temporary Grouping: The Connections selected for a specific Linesheet are not saved or stored anywhere else on the platform, making them inaccessible for future use.
  2. Tedious Setup: Since the selection is done individually for each Linesheet, the same group of Connections cannot easily be reused across multiple Linesheets, which makes it time-consuming for users to replicate this process every time.

Customer Groups

Customer Groups are pre-defined groups of Connections that already exist on the platform, primarily for reporting purposes. We decided to extend this feature, allowing users to leverage these groups when setting Linesheet Visibility.

Research

What We Already Knew

Users expressed a preference for the dual-listbox interface used elsewhere on the platform for managing large data sets, as it allowed them to efficiently search, select, and move items.

What We Did

We conducted multiple rounds of internal testing and user feedback sessions, validating our hypotheses, testing prototypes, and iterating on solutions to ensure that the final design met user needs.

What We Discovered

Despite the dual-listbox being considered a traditional UI pattern, users found it the most intuitive for managing large sets of data. It provided an easy way to search for items, select multiple entries at once, and transfer them to a new list, which could then be edited or reviewed.

Requirements

Ambitious Start

Initially, we aimed to allow users to:

  • Leverage existing Customer Groups to make it easier to assign visibility to multiple Connections at once.
  • Allow users to create and save new Customer Groups for future use, with the ability to modify and re-use them.

Scaling Back

After evaluating the scope, we decided to remove the ability to create new Customer Groups within this feature. This functionality already existed elsewhere on the platform, so we focused instead on enabling users to assign Linesheet Visibility in bulk while leveraging existing Customer Groups.

Introducing Filters

During testing, we discovered that many users didn’t actively use Customer Groups or didn’t find them useful for their workflow. Instead, many wanted to categorize Connections by other criteria, such as Price Type (i.e., the currency assigned to each customer). We decided to incorporate filters for Customer Groups and Price Types, leaving room for additional classification options in the future.

Workflows

Existing Flows

I began by creating screenflows that document the current screens and illustrate ideas for integrating the new functionality into the existing flow. To leverage our existing UI for assigning visibility to groups of connections, I started by capturing screenshots of that interface and embedding them into the screenshots of the current linesheet visibility modal. I highlighted the specific screens I plan to work on by framing them in an orange rectangle for easy identification.

Additional Flows

Phase 1 focused on enabling users to easily set up linesheet visibility for multiple linesheets and selected connections in a single step. Phase 2 was intended to introduce the ability to create customer groups directly from the new UI, replacing the existing system for creating customer groups. However, Phase 2 was ultimately abandoned due to its added complexity and the lack of sufficient time and resources for implementation.

Setting Up Visibility: From Toggles to Radio-Buttons

Previously, users selected visibility options using toggles for Public and All Connections. However, the design was confusing because selecting All Connections automatically selected Public, but the reverse wasn’t true. There was also no clear way to make a Linesheet Private; users had to turn off both toggles to achieve this.

New Approach

We switched to using radio-buttons, ensuring only one option can be selected at a time. We also added description text next to each option to clearly explain its function. A new Select Connections option was also introduced for more granular control.

Variations on a Dual-Listbox

We explored several different approaches for the dual-listbox UI to optimize the experience:

  • Add/Remove Buttons: Initially, we considered adding buttons next to each list item (e.g., Add and Remove) to allow users to move items with fewer clicks. However, this design was discarded because it made it more difficult to unselect items.

  • Checkboxes for Selection: We also thought about using checkboxes with highlights for selecting items, but this created UI complexity and potential conflicts with checkboxes used in the filters section.

  • Other Discarded Ideas:
    • Placing Customer Groups at the top of the left list for quick selection.
    • Using a Select All option at the top of the list, combined with Add and Remove buttons in the middle, to streamline the process.

Final Solution

Phase 1

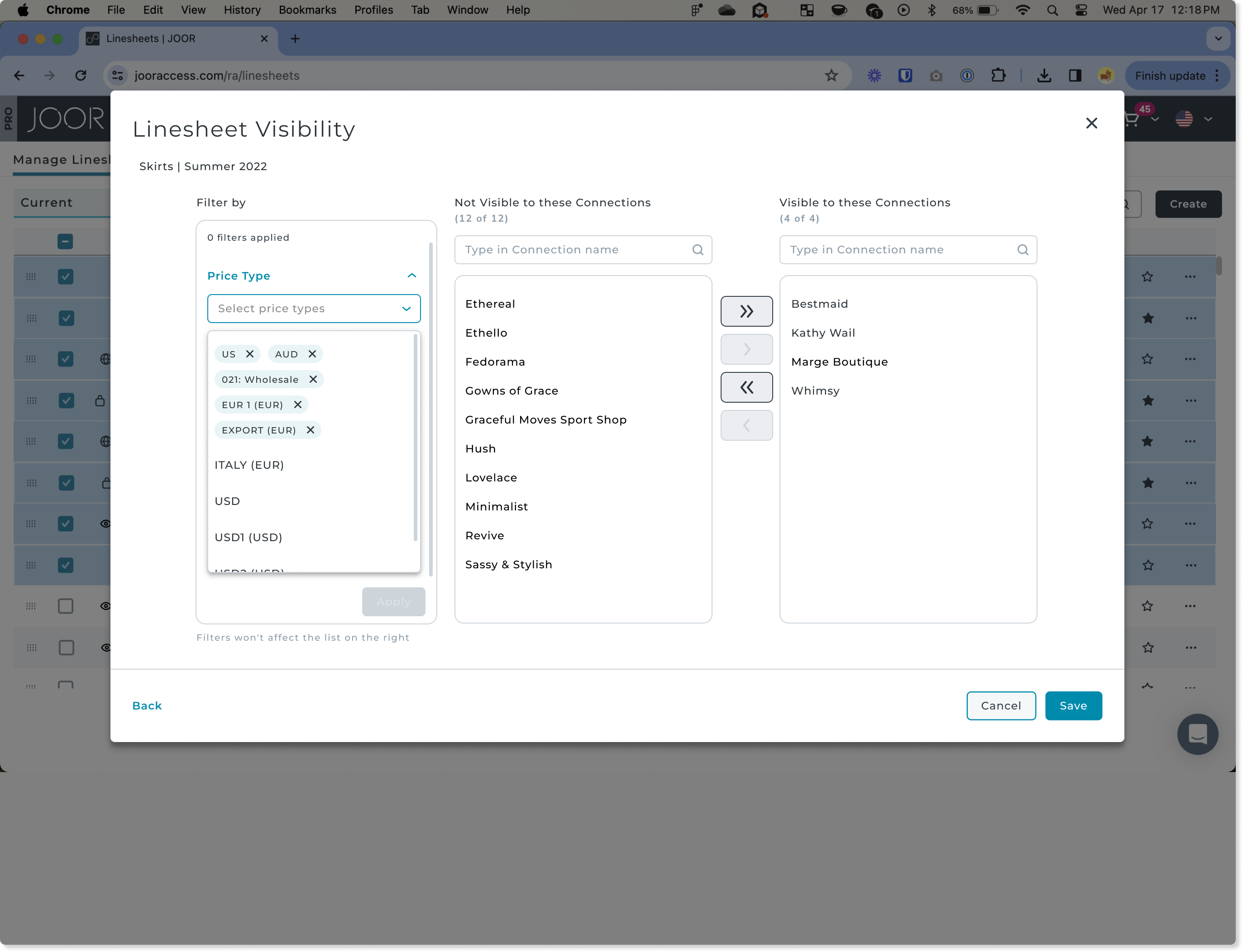

The first phase introduced the ability to set Linesheet visibility in bulk using Bulk Actions. We also added the Select Connections option to the visibility setup modal, along with a new screen to let users select from their list of Connections.

Phase 2

In the second phase, we added filters for Customer Groups and Price Types, allowing users to more easily organize and sift through their Connections based on those attributes.

Conclusion

The Linesheet Visibility improvements addressed key user pain points by enabling bulk actions and leveraging Customer Groups and Filters for better organization. Switching to radio-buttons simplified the interface, and the dual-listbox proved intuitive for managing large datasets.

Although creating Customer Groups in the modal was postponed, the phased approach delivered impactful improvements while keeping complexity low. Early feedback suggests these changes save users time and effort, with survey results expected to confirm these benefits and guide future iterations.
